Features
- Wide field-of-view, Omni-directional scanning capability.
- 300,000 pixels global shutter, with great speed and precision.
- Fast decoding speeds at 120 FPS/s.
- Minimum resolution: 4 mils (3mils supports customization.)
- Easily read the paper, plastic, mobile phones, LCD displays, etc., and even high-precision, wrinkled, damaged, or poorly printed bar codes.
- Bright red LEDs for illuminating scanning surfaces.
- Read all mainstream 1D&2D bar codes.
- The ideal option for rapid work.
Product maintenance tips?
1. The reading window must be kept clean.
2. Avoid hard and rough objects to wear or scratch the reading window;
3. Use a brush to remove stains on the reading window;
4. Please use a soft cloth to clean the window, such as glasses cleaning cloth;
5. It is forbidden to spray any liquid on the window;
6. It is forbidden to use any cleaning agents other than clean water.
Performance Parameter | |
Light Source | LED Red light（Germany） |
Image sensor | 640*480 pixels |
Resolution(maximum) | 0.102mm / 4mils |
Print contrast ratio(minimum) | ≥15% |
Motion tolerance | 2M/sec |
Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
Typical depth of Field | Precision Barcode Depth of Field 5mil CODE128 1mm—80mm 5mil EAN-13 1mm—80mm 13.34mil EAN-13 5mm—245mm 5mil PDF417 5mm—70mm 10mil PDF417 5mm—180mm 15mil PDF417 10mm—280mm 20mil DM 5mm—80mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Physical characteristics | |
Color available | Black&Orange&Blue |
Dimensions（L*W*H） | 112*101*164mm |
Weight | 313g |
Cable | 1.6m |
Electrical Parameter | |
Current | Working current（Standard): < 300 mA Standby current（Standard): < 210 mA |
Input Voltage | 5 VDC (+/- 10%)/500mA |
Environmental Parameter | |
ESD protection(Air discharge) | 8 kV |
Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
Particulate and water sealing | IP52 |
Temperature | Operation: 0 to 40 °C Storage/Transport: -40 to 70 °C |
Humidity(non-condensing) | 5 - 95% |
Ambient light | 0 -100,000 lux |
Interfaces | |
Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
Warranty | |
| 18/months |
Factory standard & Packaging size
Model | XPOS 880 | Interface | USB、USB COM |
Scanner（1PCS） | 313g | Color | Black&Grey;Black&Orange; Black&blue; |
Status | Scanner and cable are split | Cable | 1.6m （75g） |

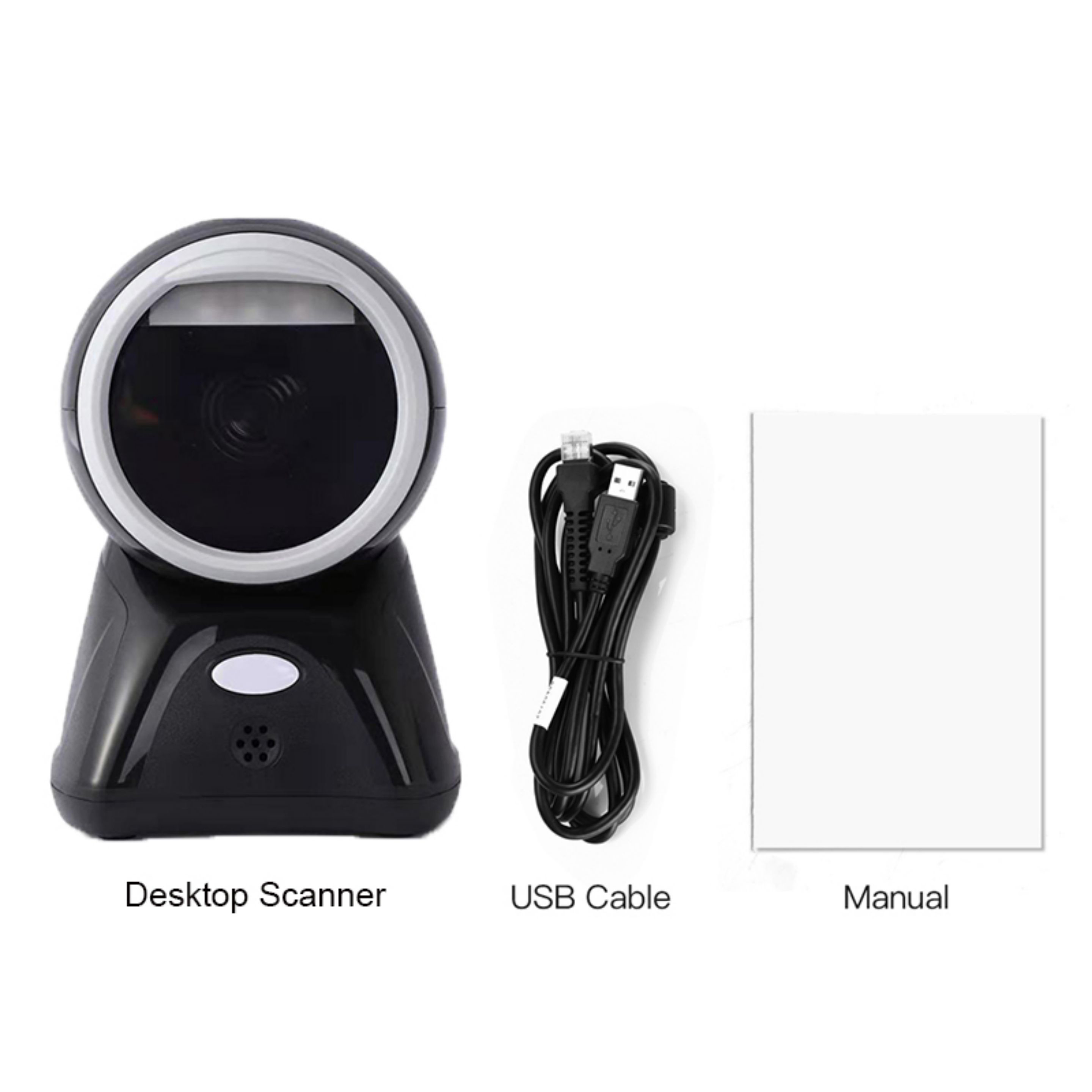

Official standard | Scanner/USB cable/manual/packaging box | ||
|
| ||
112*101*164mm
