Performance Parameters:

650nm laser(Safe visible laser diode)

Decoding ability:

UPC-A， UPC-E， EAN-13， EAN-8， Codabar

Code 39， Code 39 Full ASCII， China Post，

Plessey， MSI， Code 93， Code 128，

Industrial 2 of 5， Interleave 2 of 5， Matrix 2 of 5

standard 2 of 5， Code 11， ISBN， ISSN， Code 32

(Italian pharm code) ， Code 39 extended

GS 1-128andITF-14， GS10mni directional

GS 1 Limited， RSS 14.

Scan Type

Single Laser

Scan Speed：

≥ 150 times/s

Trigger Method:

Manua/Continuous/Automatic Induction Scanning

Scan Angle

Yaw 65°， Rotation 30°， Pitch 55

Precision

≥3mill

Depth of field

10-280mm(0.33mm， PCS 90%)

Error Rate

Less than 1/ 5 million

Interface

USB-HID， RS 232， USB-COM,PS2

Electrical Parameters

Voltage

DC5V±1%

Operating Currents

85mA

Physical Parameters

Dimensions

65mm*72.5mm*175mm

Material

ABS+PC

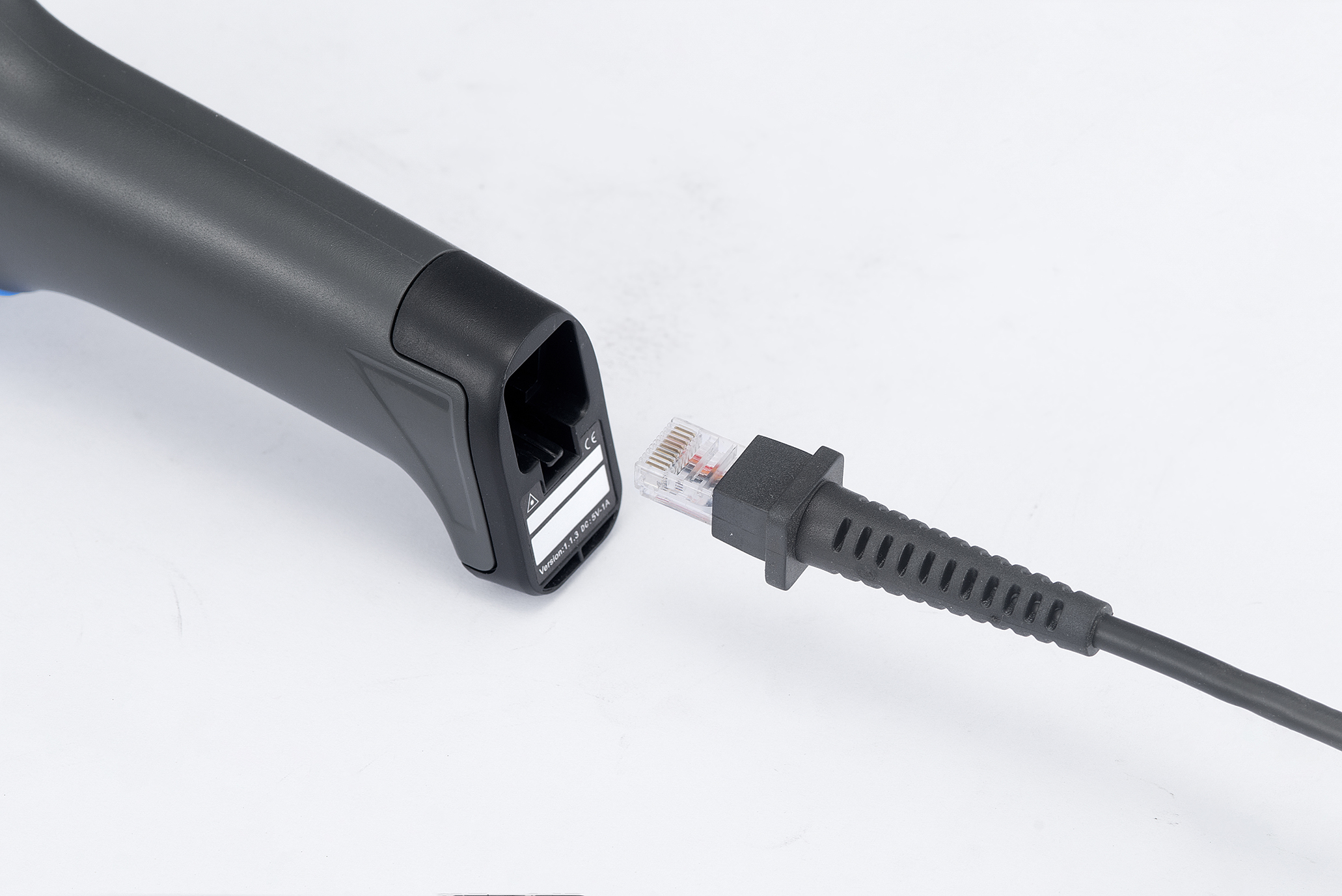

Cable

1.8m

Weight

128g

Environmental Parameters

Operating Temperature

-20℃~+50℃

Storage Temperature

-40℃~+70℃

Relative Humidity

5%~95%RH(non-condensing/non-freezing)

Shock Resistance

Withstands multiple times 3mdrops to concrete
