Light Sources:

617nm LED Aimer, White LED

Decoding abilty:

1D: Code128, EAN-13/ISBN, ISNN, Code32,

EAN-8, UPC-A, UPC-E, UCC/EAN-128, Code39,

Codabar, Code 93, Interleaved 2 of 5, Industrial2 of 5

/Stander 2 of 5/IATA2 of 5, Matrix 2 of 5, Code11，

MSIPlessey, UK, GS1 DataBar, GS1 Data BarLimit,

GS1 DataBar Expand, Datalogic2 of 5.

2D: QR Code, DataMatrix, PDF417, MicroPDF417,

AztecCode, direct Chinese.

Scan Type:

Image CMOS ;

Trigger Method:

Manua/Continuous/Automatic Induction Scanning

Scanangle

Yaw±55°, Rotation 360°, Pitch±55°

Precision

≥5mil

Depth of scan field

EAN13 25-150mm(13mil 90%PCS);

QR 10-120mm(15mil 30 byte);

PDF147 30-110mm(13mil 30 byte)

Error Rate

Less than 1/5million

Interface

USB-HID,USB-COM

Wireless Communication

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0

Wireless transmission distance

30-50meters (open distance)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.

Pairing Mode

One to One: One scanner paired with a Bluetooth mobile device

Receiving port:

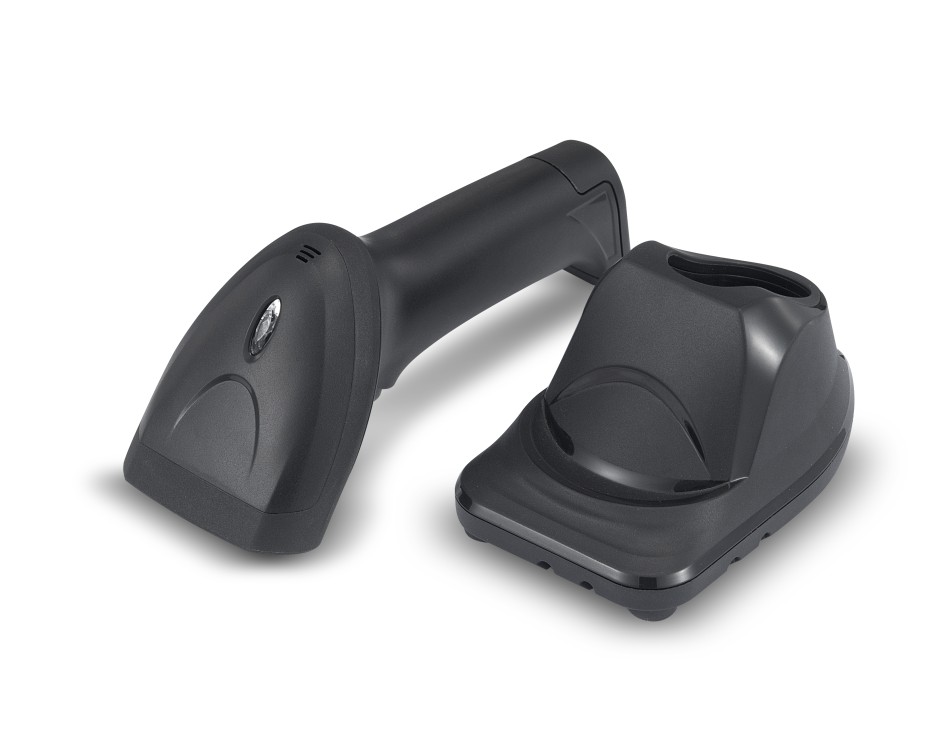

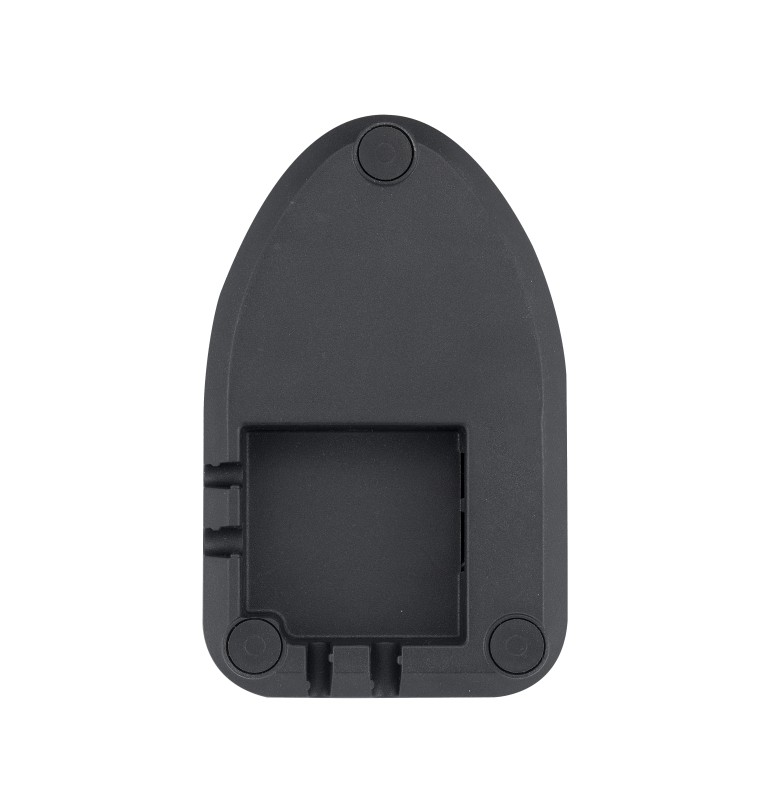

Dedicated Bluetooth receiver base, Android/IOS mobile device

Electrical Parameters

Voltage

DC5V±5%

Maximum Operating Current(MAX)

200mA

Standby Current

0mA(Standby is to cut off battery power)

Lithium battery

1400mA

Battery Working

7h

Charging Time

5h

Charging Model

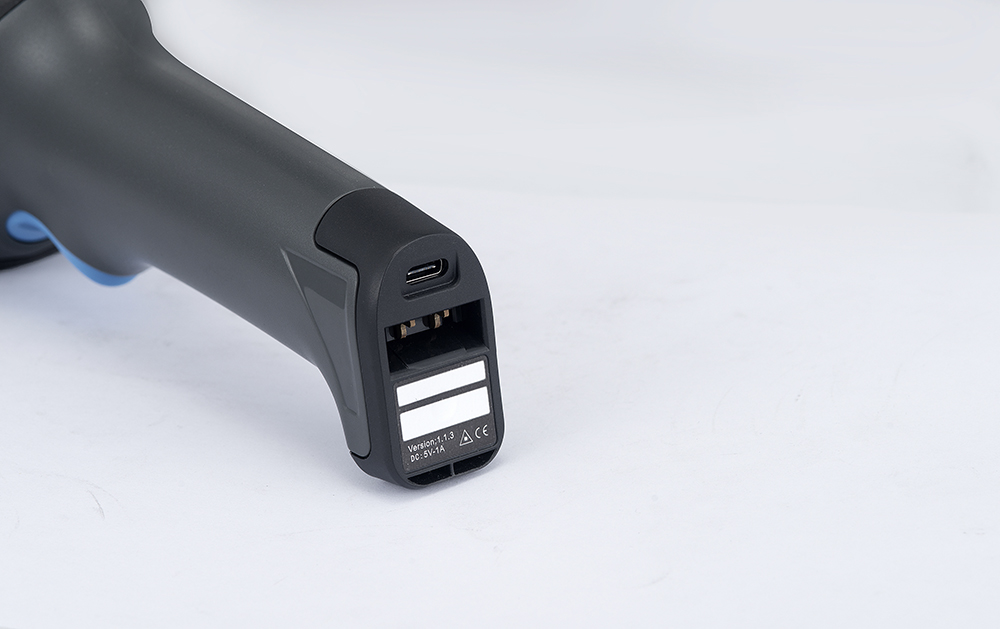

Contact charging

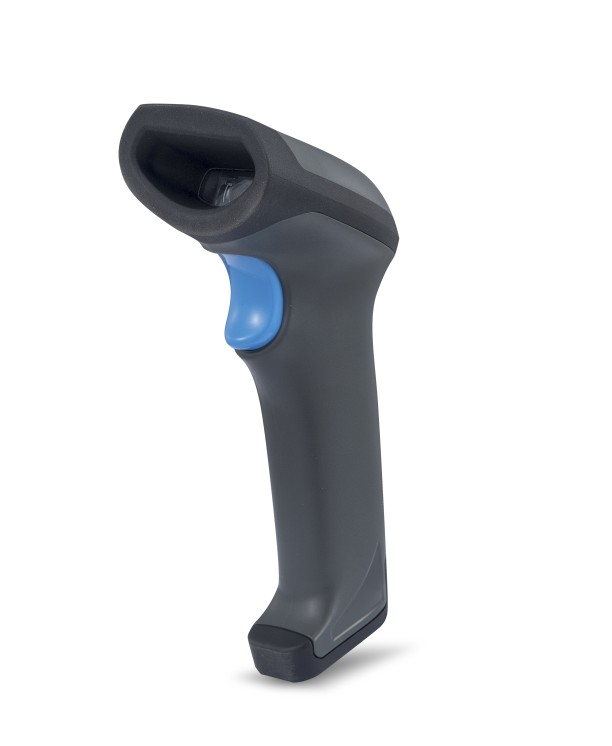

Physical Parameters

Dimensions

65mm*123mm*170mm

Material

ABS+PC

Weight

250g

Cable

1.2M

Environmental Parameters

Operating Temperature

-20℃~+55℃

Storage Temperature

-40℃~+70℃

Relative Humidity

5%~95% RH（Non-condensing）

Drop/Shock Resistance

Withstands multiple times 3m meters drops to concrete
