| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Direct Thermal |
| Max.print speed | 127 mm (5") / s Max. |

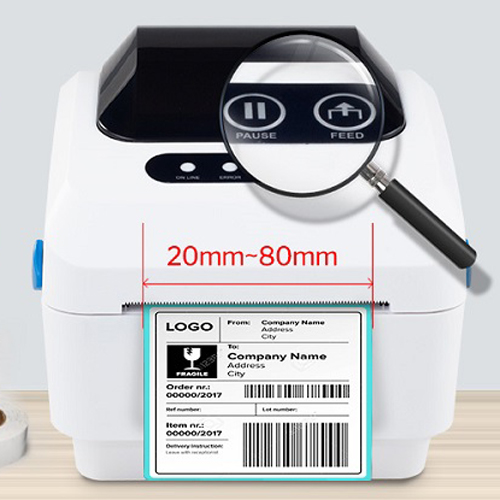

| Max.print width | 20 ~ 80mm |
| Media | |
| Media type | Continuous, Gap, Black mark |
| Media width | 20 ~ 84 mm |
| Media thickness | 0.06 ~0.19 mm |
| Media core diameter | 25~38mm |
| Performance Features | |
| Memory | RAM:4M; FLASH:4M |
| Interface | USB / USB+LAN / USB+Serial+Lan / USB+WIFI(Cloud Printing) / USB+4G(Cloud Printing) |
| Sensors | ①Gap sensor |
| ②Cover opening sensor | |
| ③Black mark sensor | |
| Fonts/Graphics/Symbologies | |
| Character sizes | FONT 1 to FONT 8; K; TST24.BF2 ; TSS24.BF2 |
| 1D bar code | CODE128 / EAN128 / ITF / CODE39 / CODE39C / CODE39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 / EAN8 / EAN8+2 / EAN8+5 / CODABAR / POSTNET / UPC-A / UPCA+2 / UPCA+5 / UPCE / UPCE+2 / UPCE+5 / MSI / MSIC / PLESSEY / ITF14 / EAN14 |
| 2D bar code | PDF-417, DataMatrix, QR code |
| Rotation | 0°、90°、180°、270° |
| Emulaion | TSPL、ESC/POS |
| Physical Features | |
| Dimension | 187(D) x 162(W) x146(H)mm |
| Weight | 1.1 kg |
| Print head life | 50 km |
| Input | AC 100~240V, 2A, 50~60Hz |
| Output | DC 24V, 2.5A |
| Operation | 5~45℃， 20~80%RH, no condensing |
| Storage environment | -40~55℃， ≤93%RH(40℃) |
| Software | |
| Driver | Windows |
| SDK | Windows / Android / iOS |
